Product description
Here you will find all technical specifications for: KW Coilover suspension V3 inox | for Volvo V60 I / Volvo S60 II.

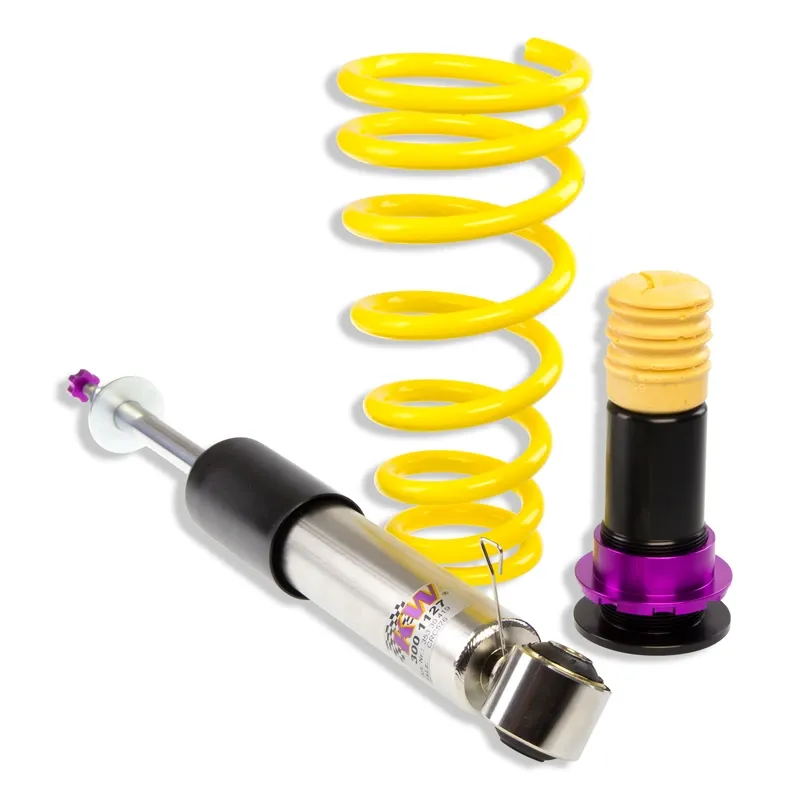

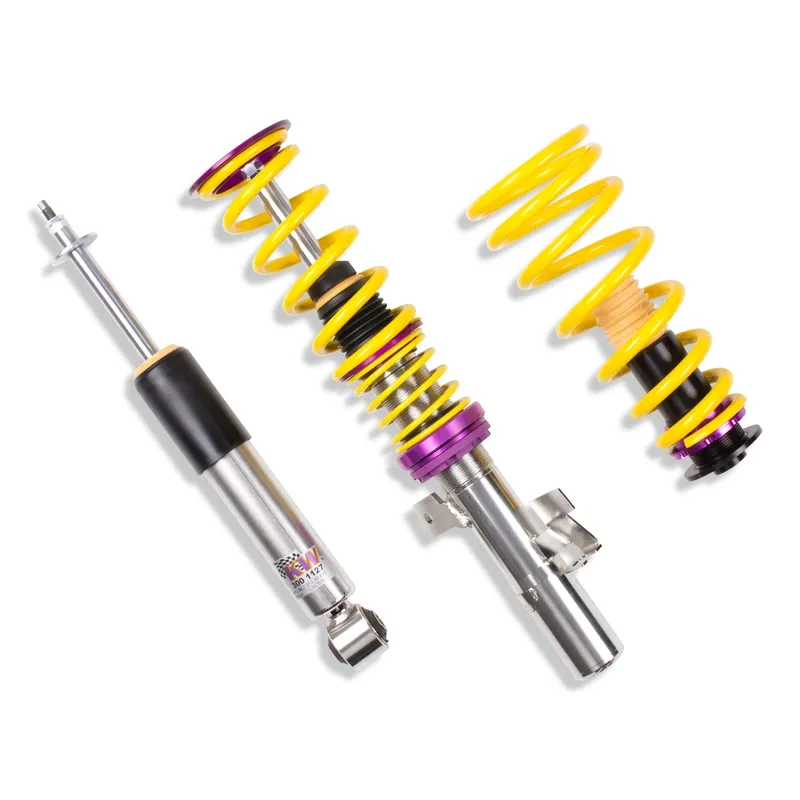

KW Coilover suspension V3 inox for Volvo V60 I / Volvo S60 II
KW coilover kit in stainless or high-grade steel: infinitely adjustable lowering and vehicle-specific damping for more driving dynamics and precision.
With parts certificate (Teilegutachten)
Stainless steel
Version V3
Sport, Clubsport
Original KW
What is this product?
A coilover kit replaces the factory struts or dampers and springs. Ride height is adjusted infinitely via a thread on the strut within the approved range.
KW matches springs and dampers for each vehicle. Depending on the version, rebound and compression damping can also be adjusted – from a road-oriented setup to track use.
Technical details & design
- Version: V3
- Product line: Street Performance
- Material: Stainless steel
- Height adjustment: front axle Thread, rear axle Thread
- Damping adjustment: Rebound and compression adjustment
- Lowering: Individual lowering
- Setup: Sport, Clubsport
- Intended use: Lowering
- Colour: yellow/purple
Benefits
- Infinitely adjustable lowering within the approved range
- More precise steering and turn-in, less body roll
- Matched spring and damper combination instead of individual parts
- Corrosion-resistant design for long service life
Scope of delivery & installation
Scope of delivery
- Set front axle coilover struts
- rear axle springs with height adjustment + dampers
Installation
- Install according to the instructions; set the ride height within the approved range
- Wheel alignment required after installation
- Installation by a specialist workshop recommended
Vehicle compatibility
“Fits” describes technical vehicle compatibility only.
Exactly which vehicles fit – series, engine and model year – is shown in the checked “Vehicle compatibility” overview on this page. It is generated directly from our vehicle database and always up to date.
Before ordering, please check the model year, engine code and equipment. If in doubt, we are happy to help.
Frequently asked questions
Does the product fit my vehicle?
The product is designed for Volvo V60 I / Volvo S60 II. Please compare model, model year and equipment with the table above or ask us before ordering.
Does the product need to be registered?
With a parts certificate, an inspection by a testing organisation and registration in the vehicle documents are usually required (Germany).
Is installation difficult?
Installation requires expertise and suitable tools. We recommend installation by a specialist workshop.
Important notes & legal information
Approval: Supplied with a German parts certificate (Teilegutachten). This product may require an inspection and registration of the modification. Please clarify the requirements with a testing organisation or specialist workshop before installation.
Vehicle compatibility: “Fits Volvo” is purely a statement of technical compatibility. The product is not an original product of the vehicle manufacturer and, unless expressly stated otherwise, has no business connection with the respective vehicle manufacturer. All brand names serve solely to identify compatible vehicles.
Installation: Installation should only be carried out by a qualified specialist workshop.
Technical data
| Farbe | gelb/lila |
| Setup | Sport, Clubsport |
| Material | Edelstahl |
| Ausführung | V3 |
| Produktlinie | Street Performance |
| Tieferlegung | Individuelle Tieferlegung |
| Anwendungsbereich | Tieferlegung |
| Höhenverstellung | Vorderachse Gewinde, Hinterachse Gewinde |
| Dämpfereinstellung | Zug- und Druckstufe |
Scope of delivery
- Set Vorderachse Gewindefederbeine
- Hinterachse Federn mit Höhenverstellung + Dämpfer
Vehicle fitment
This product is compatible with the following vehicles. “Fits [make]” refers exclusively to vehicle fitment.
| Vehicle | Engine | Body | Year |
|---|---|---|---|
| Volvo S60 II | DRIVe/D2 (114 PS) · D4162T | – | 2011–2015 |
| Volvo S60 II | D2 (120 PS) · D4204T8 | – | 2015–2018 |
| Volvo S60 II | T2 (122 PS) | – | 2015–2018 |
| Volvo S60 II | D3 (136 PS) · D5204T7 | – | 2012–2015 |
| Volvo S60 II | D3 (150 PS) · D4204T9 | – | 2015–2018 |
| Volvo S60 II | T3 (150 PS) · B4164T3 | – | 2010–2015 |
| Volvo S60 II | T3 1.5 (112 kW) | – | from 2015 |
| Volvo S60 II | T3 (152 PS) | – | 2015–2018 |
| Volvo S60 II | D3/D4 (163 PS) | – | 2010–2013 |
| Volvo S60 II | T4 FlexiFuel (132 kW) | – | from 2011 |
| Volvo S60 II | T4 2.0 (180 PS) · B5204T8 | – | 2013–2015 |
| Volvo S60 II | T4 (180 PS) · B4164T | – | 2010–2015 |
| Volvo S60 II | D4 (181 PS) · D4204T5 | – | 2013–2015 |
| Volvo S60 II | T4 (190 PS) | – | 2015–2018 |
| Volvo S60 II | D4 (190 PS) | – | 2015–2018 |
| Volvo S60 II | D4 AWD (190 PS) | – | 2015–2018 |
| Volvo S60 II | 2.0T (203 PS) · B4204T6 | – | 2010–2011 |
| Volvo S60 II | D5 (205 PS) | – | 2010–2011 |
| Volvo S60 II | D5 (215 PS) | – | 2011–2015 |
| Volvo S60 II | D5 (225 PS) · D4204T11 | – | 2015–2018 |
| Volvo S60 II | D5 (230 PS) | – | from 2014 |
| Volvo S60 II | T5 (240 PS) | – | 2010–2013 |
| Volvo S60 II | T5 (245 PS) · B4204T7 | – | 2013–2018 |
| Volvo S60 II | T5 AWD (254 PS) · B5254T12 | – | 2013–2015 |
| Volvo S60 II | T6 AWD (304 PS) · B6304T4 | – | 2010–2014 |
| Volvo S60 II | T6 (306 PS) · B4204T9 | – | 2013–2018 |
| Volvo S60 II | T6 AWD (329 PS) · B6304T4 | – | from 2014 |
| Volvo S60 II | Polestar AWD (350 PS) · B6304T5 | – | 2014–2016 |
| Volvo S60 II | Polestar AWD (367 PS) · B4204T43 | – | 2016–2018 |
| Volvo V60 I | DRIVe/D2 (114 PS) | – | 2011–2015 |
| Volvo V60 I | D2 (120 PS) | – | 2015–2018 |
| Volvo V60 I | T2 (122 PS) | – | 2015–2018 |
| Volvo V60 I | D3 (136 PS) | – | 2012–2015 |
| Volvo V60 I | D3 (150 PS) | – | 2015–2018 |
| Volvo V60 I | T3 (150 PS) | – | 2010–2015 |
| Volvo V60 I | T3 1.5 (112 kW) | – | from 2015 |
| Volvo V60 I | T3 (152 PS) | – | 2015–2018 |
| Volvo V60 I | D3/D4 (163 PS) | – | 2010–2013 |
| Volvo V60 I | D4 AWD (163 PS) | – | 2012–2013 |
| Volvo V60 I | Plug-in Hybrid (120 kW) | – | from 2014 |
| Volvo V60 I | T4 FlexiFuel (132 kW) | – | from 2011 |
| Volvo V60 I | T4 (180 PS) | – | 2010–2015 |
| Volvo V60 I | D4 (181 PS) | – | 2013–2015 |
| Volvo V60 I | D4 AWD (181 PS) | – | 2013–2015 |
| Volvo V60 I | D4 (190 PS) | – | 2015–2018 |
| Volvo V60 I | D4 AWD (190 PS) | – | 2015–2018 |
| Volvo V60 I | T4 (190 PS) | – | 2015–2018 |
| Volvo V60 I | 2.0T (203 PS) | – | 2010–2011 |
| Volvo V60 I | D5 (205 PS) | – | 2010–2011 |
| Volvo V60 I | T5 2.0 (213 PS) · B5204T9 | – | 2013–2014 |
| Volvo V60 I | D5 (215 PS) | – | 2011–2015 |
| Volvo V60 I | D5 (225 PS) | – | 2015–2018 |
| Volvo V60 I | D5 (230 PS) | – | from 2014 |
| Volvo V60 I | T5 (240 PS) | – | 2010–2013 |
| Volvo V60 I | T5 (245 PS) | – | 2013–2018 |
| Volvo V60 I | T6 AWD (304 PS) | – | 2010–2014 |
| Volvo V60 I | T6 (306 PS) | – | 2013–2018 |
| Volvo V60 I | T6 AWD Polestar Performance (329 PS) | – | from 2014 |
| Volvo V60 I | Polestar AWD (350 PS) · B6304T5 | – | 2014–2016 |
| Volvo V60 I | Polestar AWD (367 PS) | – | 2016–2018 |
⚠ Please check the model year, engine code and equipment before ordering. If in doubt, feel free to contact us – we are happy to help.
Product safety information
Pursuant to Regulation (EU) 2023/988 (GPSR).
- Manufacturer
- KW
Aspachweg 14, 74427 Fichtenberg, Germany
info@kwautomotive.de
KW
KW Coilover suspension V3 inox | for Volvo V60 I / Volvo S60 II
SKU KW35267016
€2,299.08
incl. 19% VAT, plus shipping
With parts certificate (Teilegutachten)Delivery time to Germany:2–3 business days
Shipping to Germany: from €24.00 (DHL Paket) · Weight: 24 kg
KW Coilover suspension V3 inox for Volvo V60 I / Volvo S60 II. Version: V3, Product line: Street Performance
- Stufenlose Tieferlegung innerhalb des Gutachtenbereichs
- Präziseres Lenk- und Einlenkverhalten, weniger Wankbewegungen
- Abgestimmte Feder-Dämpfer-Kombination statt Einzelteilen
- Korrosionsbeständige Ausführung für langen Einsatz
Supplied with a German parts certificate (Teilegutachten). This product may require an inspection and registration of the modification. Please clarify the requirements with a testing organisation or specialist workshop before installation.
“Fits Volvo” is purely a statement of technical compatibility. The product is not an original product of the vehicle manufacturer and, unless expressly stated otherwise, has no business connection with the respective vehicle manufacturer. All brand names serve solely to identify compatible vehicles.
Modifications to the vehicle may affect warranty or guarantee claims against the vehicle manufacturer or seller. Please clarify this with the vehicle manufacturer, dealer or a specialist workshop before installation. Your statutory guarantee rights against us for this part remain unaffected.
